Features
· Suspensions& anti-tip wheels
· Adjustable seat back
+86-(0)512-82283871
Dimensions(L×W×H) |
980(L)×600(W)×1180(H)mm |
Max Forward Speed |
8km/h(5mi/h) |
Max Driving Gradient |
10° |
Max Driving Range |
30-40KM(19-25Miles) |
Weight Capacity |
120kg(265lbs) |
Suspensions |
Rear |
Tire Sizes |
8"x2.5"(Front) 14"x3"(Rear)
|
Brake System |
Electromagnetic Brake |
Batteries |
Lead-acid 12V40AH*2pcs |
Charger |
DC24V5A AC115-230V |
Charging Time |
6-8h |
Motor |
24V/320W*2pcs(Taiwan) |
Motor Controller |
24V/50A(PG from UK) |
Heaviest Part |
56kg(123lbs) |

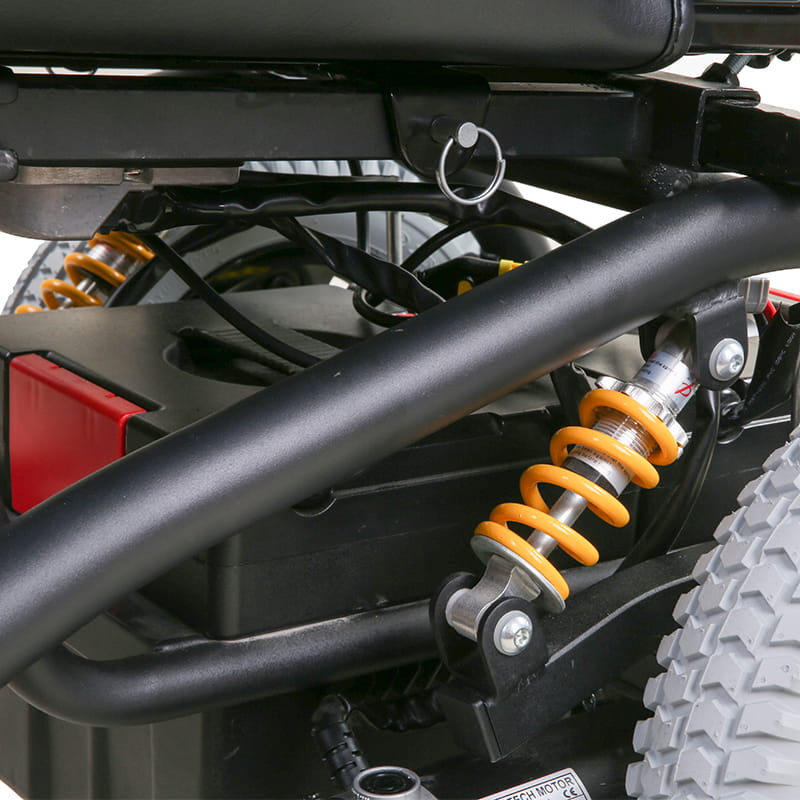

1. Suspension system: absorb vibration and improve comfortThe suspension system is an important part of a heavy-duty power wheelchair, which is directly related to the wheelchair's ability to absorb road vibrations during travel. An excellent suspension system can effectively slow down or eliminate ...
1. Design: the art of structural optimizationThe design of electric wheelchairs is the basis of steering flexibility. Excellent design should not only consider the comfort and safety of users, but also the maneuverability and stability of the vehicle. In order to achieve precise steering, electric w...
In the fast-paced modern city life, the choice of transportation is crucial for residents' daily travel. Considering the congestion of urban roads, the shortage of parking spaces and people's growing demand for environmental protection, medium-sized electric scooters have gradually become the new fa...
